Universal Testing Machine Portable, 200 N to 1 kN
Benchtop model from 200 N to 1 kN (45 to 225 lbf), weighing just 15 kg, the smallest and fastest in the line, for light, small-cross-section specimens.
The MBIOI-1P-M2 is the smallest machine in the line. At 15 kg and 250 × 123 × 560 mm, it fits in a corner of a bench and can be carried between departments or to the test site, which is not practical with the larger models, which weigh over 100 kg. It plugs into a standard 220 V outlet and draws 320 W.
It is also the fastest machine in the line: it reaches 600 mm/min, compared with 500 mm/min on the higher-capacity models. This range covers peel and adhesion tests, which require a high, constant speed, while keeping the 0.02 mm/min minimum for brittle materials.
Its 1 kN (225 lbf) capacity, 425 mm vertical stroke and 48 mm test space width make it suited to light, small-cross-section test specimens. For larger samples or loads above 1 kN, the recommended model is the MBIOI-10-M2.
Typical applications
Materials and products commonly tested on this model. For other applications, talk to our technical team.
Available capacities
The MBIOI-1P-M2 is offered in 200 N, 500 N or 1 kN. The technical data on this page refer to the frame, with the same stroke, test space width and dimensions across the 3 capacities.
200 N
45 lbf
500 N
112 lbf
1 kN
225 lbf
What the MBIOI-1P-M2 tests in practice
Estimated breaking force of common test specimens, compared with each capacity of the MBIOI-1P-M2. The estimate is the cross-sectional area times the typical strength of the material.
| Test specimen | Estimated force | 200 N | 500 N | 1 kN |
|---|---|---|---|---|
| Rubber, ISO 37 type 1 dumbbell (6 × 2 mm, up to 25 MPa) | 0.3 kN | Above | Suitable | Suitable |
| Plastic, ISO 527 type 1A specimen (10 × 4 mm, up to 70 MPa) | 2.8 kN | Above capacity; recommended: MBIOI-10-M2 | ||
| Steel sheet, 12.5 × 1 mm (400 MPa) | 5 kN | Above capacity; recommended: MBIOI-10-M2 | ||
| 10 mm CA-50 rebar (Brazilian rebar grade), tension | 47 kN | Above capacity; recommended: MBIOII-50-M2 | ||
| Mortar, 4 × 4 cm half-prism in compression (up to 40 MPa) | 64 kN | Above capacity; recommended: MBIOII-200-M2 | ||
| 16 mm CA-50 rebar, tension | 121 kN | Above capacity; recommended: MBIOII-200-M2 | ||
| Concrete, 10 × 20 cm cylinder in compression (30 MPa) | 236 kN | Above capacity; recommended: MBIOII-300-M2 | ||
| 25 mm CA-50 rebar, tension | 295 kN | Above capacity; recommended: MBIOII-300-M2 | ||
| 32 mm CA-50 rebar, tension | 483 kN | Above capacity; recommended: MBIOII-600-M2 | ||
Near limit: above 80% of capacity, with no margin for a material stronger than expected. Below range: less than 2% of the smallest load cell of the model (0.05 kN (11 lbf)). Reference values; the actual material may vary. How to calculate it for your specimen is explained in the universal testing machine guide.
Comparison with neighboring models
Where the MBIOI-1P-M2 sits in the M2 line, between the nearest smaller and larger models.
| Model | Capacity | Type | Vertical crosshead travel | Test space width | Speed | Weight |
|---|---|---|---|---|---|---|
| MBIOI-1P-M2 (este) | 200 N to 1 kN | Portable | 425 mm | 48 mm | 0.02 to 600 mm/min | 15 kg |
| MBIOI-10-M2 | 2 to 10 kN | Single column | 890 mm | 150 mm | 0.02 to 500 mm/min | 105 kg |
Types of tests performed
We cover a wide range of mechanical tests, whether running standardized tests according to specific standards or developing custom tests to meet your needs.
Tensile testAxial tensile force up to fracture: modulus, yield strength, tensile strength and elongation.
Compression testCrushes the specimen between platens: compressive strength and modulus.
Crush testCompresses corrugated board, paper tubes and boxes: ECT, FCT, RCT and BCT.
Foam indentation (IFD)A circular indenter foot compresses the foam to 25% and 65%: firmness of mattresses and seats (IFD).
Flexural testLoads a bar supported at 3 or 4 points: flexural strength and flexural modulus.
Shear testMakes one section slide over the other: pins, rivets, joints and adhesives.
Pull-out testPulls an embedded element, such as an anchor or a bolt, until it is pulled out.
Bond testMeasures the stress that detaches a coating, mortar or adhesive from the substrate.
Peel testPeels tapes, films and laminates at 90°, 180° or in a T-peel: force per unit width.
Tear testMeasures the force needed to initiate or propagate a tear in film, rubber or fabric.
Fatigue testApplies cyclic loading until failure: S-N curve and fatigue limit.
Fracture toughnessLoads a pre-cracked specimen and measures its resistance to crack propagation: KIc.
Bend testBends the specimen over a mandrel to 90° or 180° and checks for cracks.
Cupping testA spherical punch stretches a clamped sheet until it cracks: Erichsen index.
Puncture resistance testA probe pierces film, geotextile or gloves: puncture force and energy.
Creep testConstant load over a long time, usually at high temperature: strain vs. time.
Torsion testTwists one end of the specimen against the other: torque, angle and shear modulus G.
Axial-torsion testAxial force and torque applied simultaneously to the same specimen: biaxial stress state.
Coefficient of frictionForce to slide one surface over another: static and kinetic friction (ASTM D1894).Need a different test? Talk to Biopdi about a custom test.
Main features
Technical specifications and equipment features.
- Model:
- MBIOI-1P-M2
- Available capacities:
- 200 N, 500 N or 1 kN (45, 112 or 225 lbf)
- Maximum frame capacity:
- 1 kN (225 lbf)
- Test speed:
- 0.02 to 600 mm/min
- Vertical crosshead travel:
- 425 mm
- Horizontal clearance (test space width):
- 48 mm
- Dimensions (L × W × H):
- 250 × 123 × 560 mm
- Weight:
- 15 kg
- Power:
- 320 W
- Power supply:
- 220 V, 60 Hz
Drive: preloaded recirculating ball screws with cylindrical guide columns
Non-volatile memory: calibration data stored independently of the computer

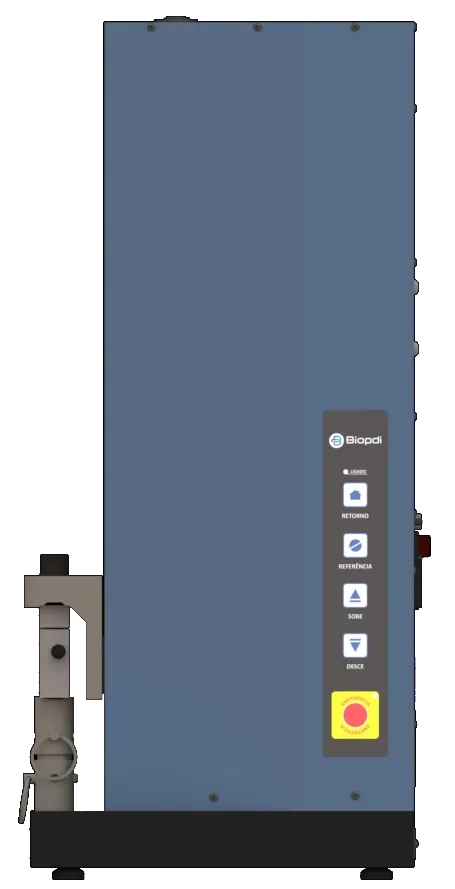

Mechanical front panel with buttons (on/off, up/down, home, reference, emergency stop)
Digital PLC front panel with speed adjustment (optional)
Built-in touchscreen (optional)
Force measurement with interchangeable load cells, class 1 accuracy (ISO 7500-1, ABNT NBR ISO 7500-1:2023 in Brazil)
Automatic transducer recognition and setup

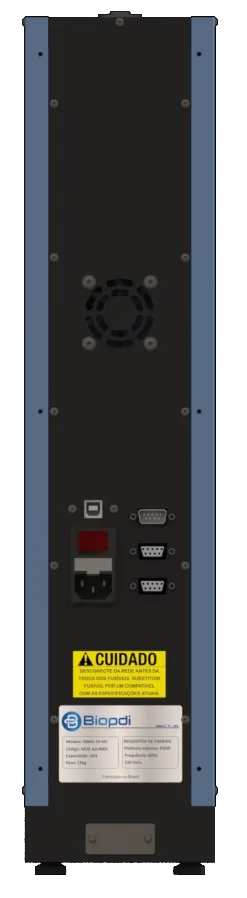

Data communication: digital via TCP-IP, USB or Serial
Measurement channels included, up to 4 additional strain channels, support for LVDTs and extensometers
Software for adjustments, configuration, data acquisition, analysis and report generation
Corrosion-resistant electrostatic exterior paint
Technical support throughout Brazil
1-year warranty against manufacturing defects
ISO 9001 certification
Mechanical and electronic limit switches (digital scale), optional
Main fixtures
Most used grips and fixtures. The capacity of each one must be compatible with the test force and with the capacity of the model.
Tensile test with wedge grips
Wedge-action grip, in 5 kN, 20 kN and 200 kN.
Compression test
Compression platens, in 1 kN, 50 kN and 300 kN.
Flexural test
Flexural test fixture, in 10 kN, 50 kN and 300 kN.
Shear test
Fixture per ASTM C273/C273M-20.
Tensile test with lever grips
Lever-action grip, 5 kN.
Tensile test of wires
Eccentric roller grip for wires and filaments.
Tensile test of threaded specimens
Grip for threaded specimens and bolts.
Coefficient of friction
Friction testing per ASTM D1894.
Accessories: extensometers
The MBIOI-1P-M2 accepts up to 4 strain channels in addition to force and position, with automatic transducer recognition, for extensometers and LVDTs. An extensometer is required when the test determines the modulus of elasticity or the offset yield strength.
Clip-on
Attached to the specimen, for modulus and Rp0.2. L0 from 25 to 100 mm, travel up to 50 mm.
Long-travel
For rubbers, films and ductile plastics. L0 from 10 to 100 mm, travel up to 250 mm.
Deflectometer
Measures specimen deflection in flexural testing. Travel from 1 to 50 mm.
COD clip gauge
Measures crack mouth opening displacement (CMOD) at the notch. L0 from 5 to 20 mm, travel up to 12 mm.
Available models: codes, L0 and travel
Four families for measuring strain directly on the test specimen, with up to 4 simultaneous channels in the BioLab software. L0 is the initial gauge length.
Clip-on
Attached directly to the specimen, for small strains such as modulus of elasticity and offset yield strength.
| Code | L0 | Travel |
|---|---|---|
| EXT-100-001 | 25 mm | −2.5 to +2.5 mm |
| EXT-100-002 | 25 mm | 0 to +12.5 mm |
| EXT-100-003 | 25 mm | 0 to +25 mm |
| EXT-100-003 | 50 mm | −5 to +5 mm |
| EXT-100-004 | 50 mm | 0 to +25 mm |
| EXT-100-005 | 50 mm | 0 to +50 mm |
| EXT-100-006 | 80 mm | 0 to +8 mm |
| EXT-100-007 | 80 mm | 0 to +40 mm |
| EXT-100-008 | 100 mm | 0 to +50 mm |
Long-travel
For materials that elongate a great deal before breaking, such as polymers, elastomers and films.
| Code | L0 | Travel |
|---|---|---|
| EXT-200-001 | 10 to 100 mm | 25 mm |
| EXT-200-002 | 10 to 100 mm | 50 mm |
| EXT-200-003 | 10 to 100 mm | 100 mm |
| EXT-200-004 | 10 to 100 mm | 150 mm |
| EXT-200-005 | 10 to 100 mm | 250 mm |
Deflectometer
Measures the deflection of the test specimen in flexural tests.
| Code | Travel |
|---|---|
| EXT-300-001 | 1 mm |
| EXT-300-002 | 4 mm |
| EXT-300-003 | 6 mm |
| EXT-300-004 | 12 mm |
| EXT-300-005 | 25 mm |
| EXT-300-006 | 50 mm |
COD clip gauge
Measures crack mouth opening displacement (CMOD) in tests on notched specimens, such as the notched 3-point flexural test.
| Code | L0 | Travel |
|---|---|---|
| EXT-400-001 | 5 mm | +2.5 mm |
| EXT-400-003 | 10 mm | +4 mm |
| EXT-400-004 | 12 mm | +7 mm |
| EXT-400-005 | 20 mm | +12 mm |
Accessories: load cells
The MBIOI-1P-M2 works with interchangeable load cells from 5 kN to 1 kN. Using the load cell whose capacity is closest to the test force keeps the measurement within the verified range.
BioLab Software
The machine is operated by BioLab, software developed by Biopdi. It controls the machine, acquires force, position and up to 4 extensometer channels, calculates results according to the selected standard or method and generates reports in PDF, HTML and CSV. It runs on a computer with Windows 10 or later, connected via USB or serial, and works without internet.
Test standards supported
The Universal Testing Machine meets the main Brazilian (ABNT NBR) and international (ISO and ASTM) standards, with class 1 force measurement according to ISO 7500-1 (ABNT NBR ISO 7500-1:2023 in Brazil). For other standards, contact our technical team.
Tensile test
22 normas- ABNT NBR ISO 6892-1:2024metals, room temperature
- ABNT NBR ISO 6892-2:2024metals, elevated temperature
- ASTM E8/E8M-25metais
- ABNT NBR 7549:2021aluminum and aluminum alloys
- ABNT NBR 6207:2024steel wire
- ABNT NBR 6349:2022prestressing bars, strands and wires
- ABNT NBR 6810:2010metallic components of electrical wires and cables
- ABNT NBR 15796-5:2019NiTi wire for implants
- ABNT NBR 15664-4:2020coating adhesion of implants
- ABNT NBR ISO 10319:2026geosynthetics, wide-width strip
- ABNT NBR ISO 10321:2013geosynthetic seams
- ABNT NBR NM ISO 1924-2:2012paper and board
- ABNT NBR 15010:2017tissue paper, wet
- ABNT NBR ISO 12625-12:2026tissue paper, perforations
- ABNT NBR 9141:1998optical and telephone cables
- ABNT NBR 13223:1994telephone cables
- ABNT NBR 13978:1997optical cables
- ABNT NBR 13512:2008optical cables, fiber strain
- ABNT NBR 14075:1998optical cord
- ABNT NBR 16645:2017microdutos
- ASTM D6775-13(2024)textile tapes and webbing
- ASTM D1414-22seal rings (O-rings)
Compression test
7 normas- ABNT NBR 5739:2018concrete, cylindrical test specimens
- ABNT NBR 6739:2009corrugated board packaging
- ABNT NBR 12095:1991elastomeric marine fenders
- ABNT NBR 12132:1991telephone cables
- ABNT NBR 13507:2008optical cables
- ABNT NBR 15270-2:2023ceramic blocks and bricks
- ASTM D4833/D4833M-07(2020)geomembrane puncture
Flexural test
15 normas- ABNT NBR 12142:2010concrete, flexural tensile strength of prisms
- ABNT NBR 7562:1985cast iron pipe, ring
- ABNT NBR 7587:1985cast iron pipe, strip
- ABNT NBR 15668-2:2009intramedullary nail, 4-point
- ABNT NBR 15676-2:2017bone plates
- ABNT NBR 15700-6:2009external bone fixators
- ABNT NBR 13514:2009optical cables, alternating bending
- ABNT NBR 14405:2015optical cable splice
- ABNT NBR 15445-2:2006optical fiber, 2-point
- ABNT NBR 13279:2005mortar, flexural tensile and compressive strength
- ABNT NBR 12067:2017flat glass
- ABNT NBR 7190-4:2022timber, structural members
- ABNT NBR 7190-2:2022timber, mechanical grading of members
- ABNT NBR ISO 4049:2026dental composite resins
- ISO 6872:2024dental ceramics, biaxial flexure
Shear test
15 normas- ABNT NBR 8309:2006aluminum rivets and wire
- ABNT NBR 11908:2015cast iron pipe
- ASTM C273/C273M-20sandwich panel cores
- ASTM D3163-01(2023)bonded rigid plastic joints (lap shear)
- ABNT NBR 5916:2026welded steel wire mesh, joint
- ABNT NBR 7190-3:2022solid wood, defect-free (clear) test specimens
- ABNT NBR 7190-6:2022glued laminated timber, glue line
- ABNT NBR 14827:2002anchors in concrete and masonry
- ABNT NBR ISO 12466-1:2012plywood, bonding quality
- ABNT NBR 9908:2019elastomeric adhesive
- ABNT NBR 10459:2023adhesives, creep of bonded joints
- ABNT NBR 5537:2002brake friction material
- ABNT NBR ISO 6311:2006brake linings
- ABNT NBR 15664-5:2020coating adhesion of implants
- ABNT ISO/TS 11405:2014adhesion to tooth structure
Bend test
7 normas- ABNT NBR ISO 7438:2022metais
- ABNT NBR 17005:2021steel bars and wires for reinforced concrete (Brazil)
- ISO 5173:2023welded joints
- ABNT NBR NM-COPANT 10:2000steel tubes
- ABNT NBR NM 59:2000reverse bend test of steel sheet and strip
- ABNT NBR 13518:2011optical cables
- ABNT NBR 9135:2011telecommunication cables
Coefficient of friction
1 norma- ASTM D1894-24plastic film and sheeting
Adhesion and peel
1 norma- ASTM D3330/D3330M-04(2025)adhesive tapes, 180° and 90° peel
Strain measurement (extensometry)
3 normas- ASTM E83-25extensometer calibration and classification
- ISO 9513:2012extensometer calibration
- ABNT NBR ISO 9513:2013Brazilian (ABNT) adoption of ISO 9513
Machine calibration
2 normas- ABNT NBR ISO 7500-1:2023force-measuring system, class 1
- ABNT NBR ISO 376:2012force-proving instruments
Safety
2 normas- NR-12safety of machinery and equipment (Brazilian regulatory standard)
- NR-10safety in electrical installations (Brazilian regulatory standard)
Videos and presentations
Presentations and tensile tests of metals and polymers on Biopdi universal testing machines.
Models and capacities
Select a model to see detailed specifications.
Portable
200 N to 1 kN
45 to 225 lbf
MBIOI-1P-M2
Single column
2 to 10 kN
450 to 2,248 lbf
MBIOI-10-M2
Extended column
2 to 10 kN
450 to 2,248 lbf
MBIOI-10-M2
Dual column
5 to 50 kN
1,124 to 11,240 lbf
MBIOII-50-M2
Dual column
100 to 200 kN
22,481 to 44,962 lbf
MBIOII-200-M2
Floor-standing
300 kN
67,443 lbf
MBIOII-300-M2
Floor-standing
600 kN
134,886 lbf
MBIOII-600-M2
Floor-standing
1,000 kN
224,809 lbf
MBIOII-1000-M2
Frequently asked questions
Common questions about this model. For further information, contact our technical team.
Is this model suitable for testing plastic films, paper and fabrics?
Yes, that is the main application of the MBIOI-1P-M2. The 1 kN capacity comfortably covers the breaking force of these materials, and the speed of up to 600 mm/min, the highest in the Biopdi line, meets the needs of peel and adhesion tests, which require a high, constant speed.
What is the difference between the 1 kN portable model and the 10 kN model?
The MBIOI-10-M2 has ten times the capacity, and the test space width increases from 48 mm to 150 mm, accepting test specimens with a much larger cross-section. On the other hand, the portable model weighs 15 kg versus 105 kg and is the only one in the line that a single person can carry.
What do I need in the lab to install the machine?
A standard 220 V, 60 Hz outlet and about 25 × 13 cm of free bench space, with 56 cm of usable height above it. No three-phase power, foundation or anchoring is required, since the machine weighs 15 kg.
Do I need a computer to operate the machine?
Yes. The machine is operated with the BioLab software, which runs on a desktop or laptop computer with Windows 10 or later, connected via USB or serial. It sets up the test, acquires the data, calculates the results and generates reports in PDF, HTML and CSV, and it works without an internet connection.
What comes with the machine and what is the warranty?
It comes with the testing software, an instruction manual and a load cell with class 1 accuracy according to ABNT NBR ISO 7500-1:2023 (the Brazilian adoption of ISO 7500-1). The warranty is 1 year against manufacturing defects, with technical support throughout Brazil. Biopdi is ISO 9001 certified.
In which capacities is the MBIOI-1P-M2 offered?
Available in 200 N, 500 N or 1 kN (45 lbf, 112 lbf, 225 lbf). The frame is the same across all 3 capacities, with the same stroke, test space width and dimensions; the choice starts from the highest force the lab needs to measure.
Which load cells can be used on the MBIOI-1P-M2?
The interchangeable load cells for this model range from 0.05 kN (11 lbf) to 1 kN (225 lbf): 0.05 kN (11 lbf), 0.1 kN (22 lbf), 0.5 kN (112 lbf), 1 kN (225 lbf). Using the load cell whose capacity is closest to the test force keeps the measurement within the verified range, with class 1 accuracy per ISO 7500-1:2023 (ABNT NBR ISO 7500-1:2023 in Brazil).
What is the test speed range of the MBIOI-1P-M2?
From 0.02 to 600 mm/min. The speed for each test is set by the material standard and programmed in the BioLab software, which also supports constant or variable force tests and stepwise cyclic tests.
Request your quote
Price, delivery time and commercial terms for the Portable, 200 N to 1 kN. Fill in the form below and our team will reply with a technical proposal.
Reply within 24 business hours
A proposal covering capacity, fixtures and the standards met, not just the price.
Configured for your test
Grips, load cells and software selected based on your test specimen.
In-house manufacturing, ISO 9001
Installation, training and technical support provided by the people who designed the machine.
