Test press for Direct Shear Apparatus

Direct shear apparatus for soil testing to ASTM D3080, available in manual, semi-automatic and electric automatic models.

Biopdi direct shear apparatus

The Biopdi direct shear apparatus performs the direct shear test of soils according to ASTM D3080/D3080M: the specimen, in a 60 or 100 mm split shear box, is consolidated under constant normal stress and sheared slowly under drained conditions to obtain the cohesion c' and the friction angle φ' that define the shear strength of the soil in the design of retaining structures, foundations and slopes.

There are three models: the manual, with a proving ring and a lever arm for weights; the semi-automatic, with a load cell, LVDTs, motor and touchscreen; and the electric automatic, electromechanical, with 10 kN (2,248 lbf) capacity, speed from 0.0001 to 20 mm/min, two load cells and two LVDTs, which performs consolidation and shearing without operator intervention.

The step-by-step test procedure, including the Mohr-Coulomb failure envelope calculation, is in the article on the direct shear test.

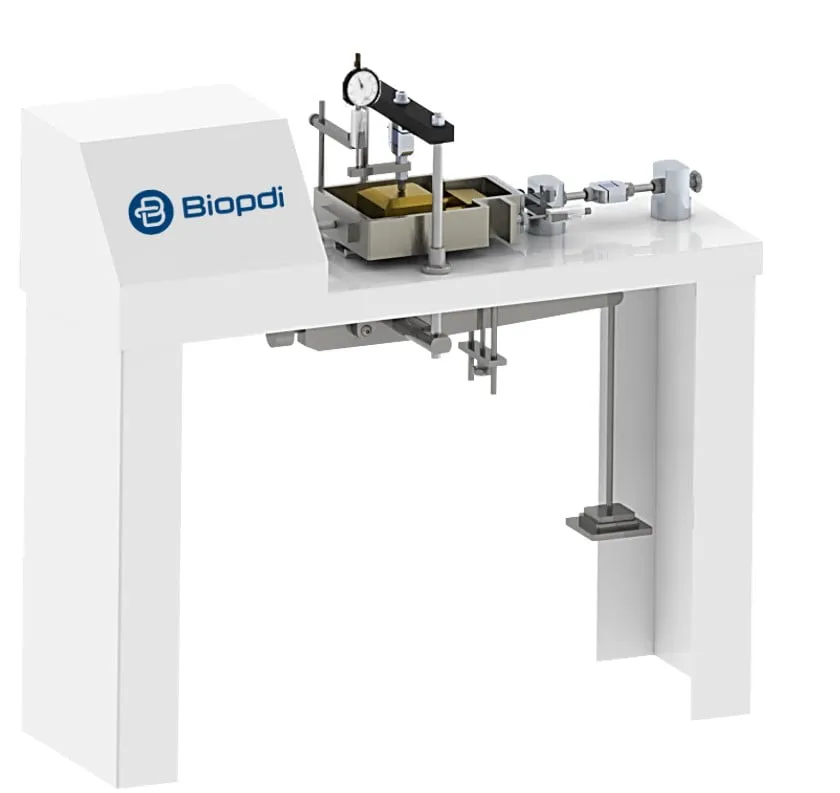

Direct shear test apparatus - manual version

Direct Shear Apparatus - Manual and Semi-automatic

Direct shear test apparatus - automatic version

Direct shear apparatus - electric automatic

Standards met

The direct shear apparatus for soil testing meets the following standards:

There is no specific NBR (Brazilian standard) for direct shear testing of soils, so laboratories in Brazil follow ASTM D3080. ISO 12957-1, sometimes associated with this test, is a standard for geosynthetics: it measures the friction between a geotextile or geogrid and the soil, and it cannot be used to determine the c' and φ' of a soil. The Brazilian version, ABNT NBR ISO 12957-1, was withdrawn in January 2026.

For other standards, get in contato our technical team.

Biopdi has its own technology to develop, manufacture and sell any type of soil testing equipment, so any machine parameter can be customized for our customers. Get in contato to learn more.

Videos

Videos about the direct shear apparatus for soil testing, presenting the main features of the equipment.

Model features

Main features of the direct shear apparatus for soil testing.

Manual

This version has a proving ring with a 500 kgf (4.9 kN) capacity to measure the shear force, a lever for weights of up to 1,000 kgf (9.8 kN) to apply the normal stress, a shear box, a dial indicator on the specimen to measure the change in height, a dial indicator to measure the horizontal displacement, and rubber feet.

Semi-automatic

This version has a load cell with a 500 kgf (4.9 kN) capacity, a lever for weights of up to 1,000 kgf (9.8 kN) to apply the normal stress, a shear box, an LVDT on the specimen to measure the change in height, an LVDT to measure the horizontal displacement, a motor for automatic, controlled application of the shear stress and the normal stress, and a touchscreen to set the test parameters.

Automatic electric

This version is electromechanical, with a capacity of 10 kN (2,248 lbf) and two axes with ball screws: the vertical axis applies the normal force, with constant-load control, and the horizontal axis applies the shear force, from 0.0001 to 20 mm/min. Two load cells measure the normal and shear forces, two LVDTs measure the horizontal displacement and the change in height, and the touchscreen runs the consolidation and shearing stages automatically, recording the test on an SD card.

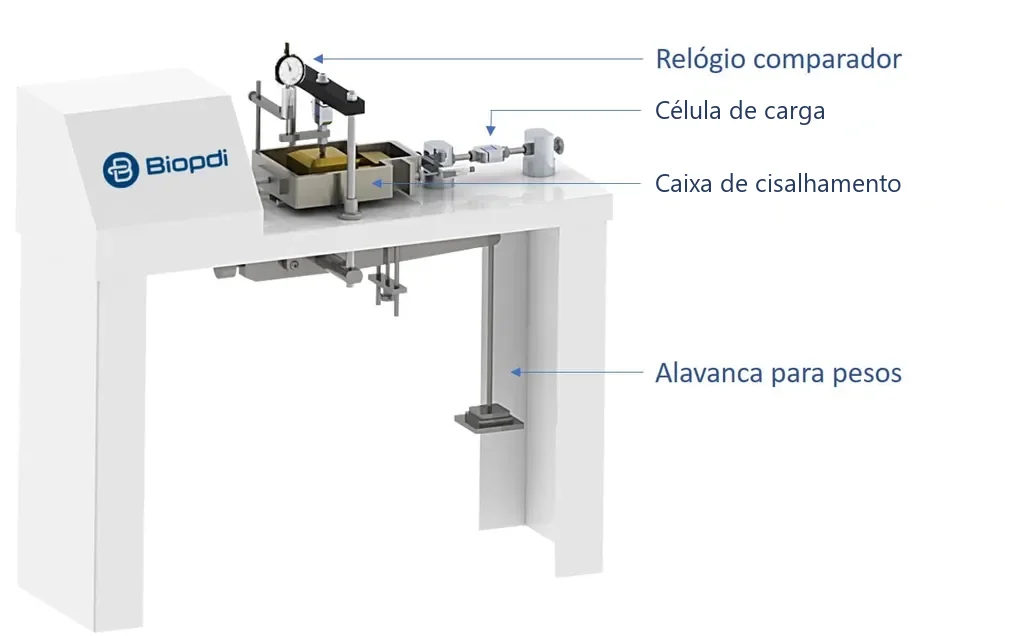

Biopdi lever-type direct shear apparatus with labeled parts: dial indicator, load cell, shear box and weight lever

Manual / Semi-automatic

The weight lever, under the bench, applies the normal force; the shear box holds the test specimen; the load cell, to the right of the box, measures the shear force (in the manual version, this reading is taken on the proving ring); and the dial indicator, at the top, measures the change in height.

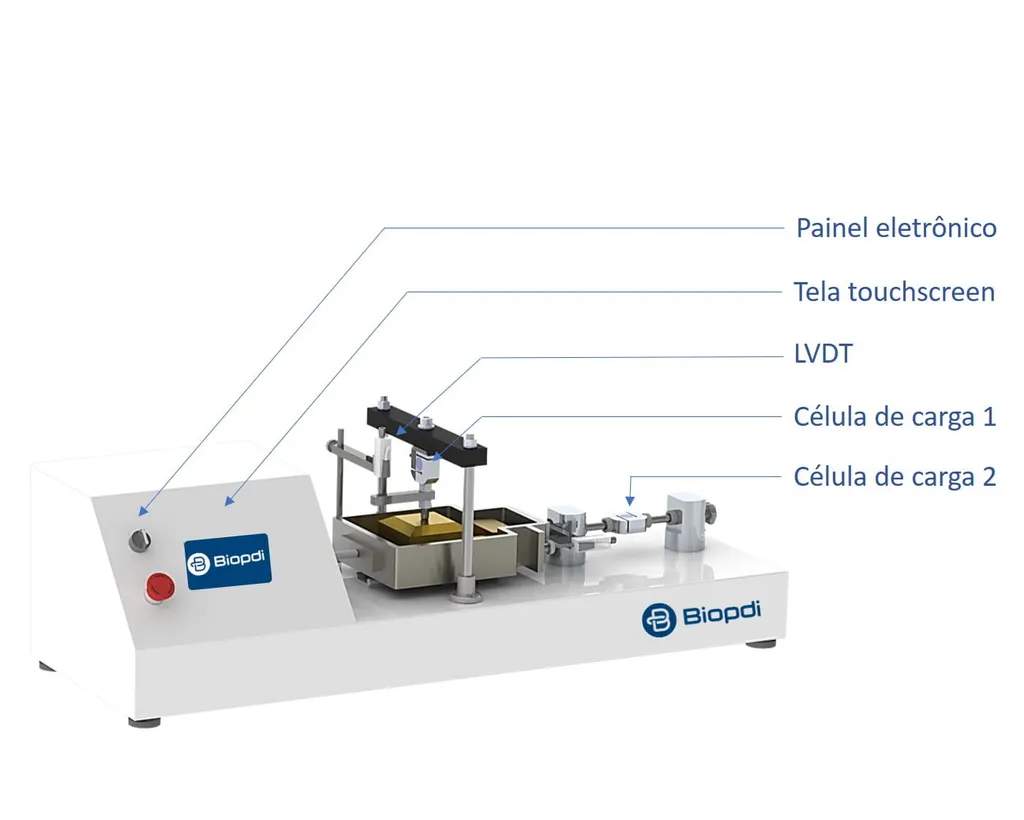

Automatic direct shear apparatus - features

Automatic electric

The machine: electric automatic apparatus

The figures below come from the specifications manual of the electric automatic apparatus (CDL-10kN): the assembled machine, the main components labeled, and the rear connection panel, where the two load cells and the two LVDTs are connected.

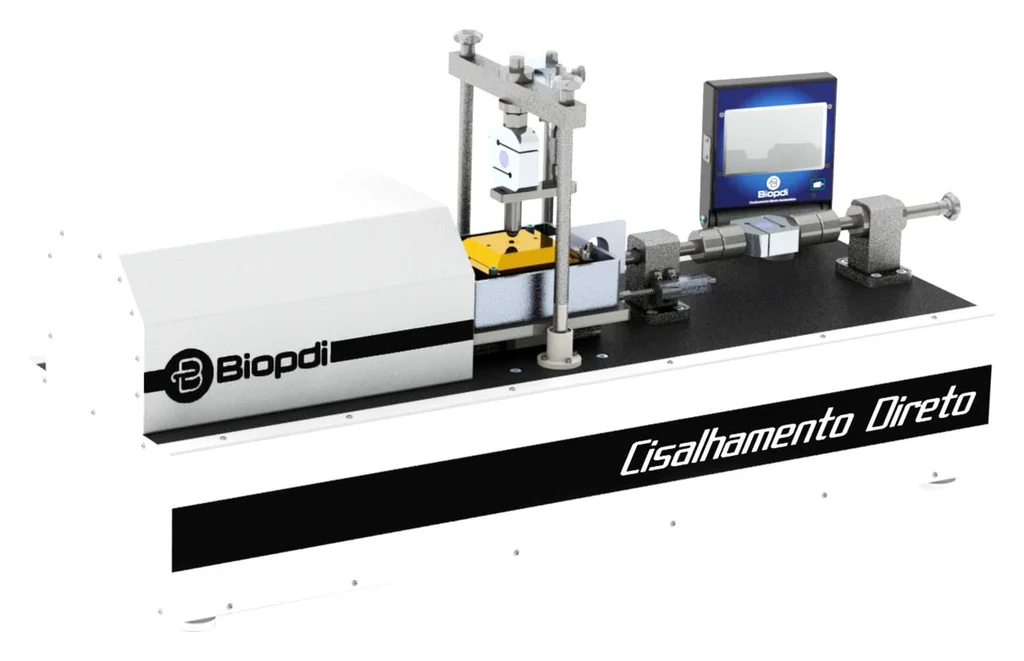

Biopdi 10 kN electric automatic direct shear apparatus, with the shear box in the specimen carrier, the vertical axis with load cell, the horizontal axis and the touchscreen
The 10 kN (2,248 lbf) electric automatic benchtop apparatus. The frame holds the vertical axis, which applies the normal force on the shear box; on the right, the horizontal axis, which pushes the specimen carrier and applies the shear force, from 0.0001 to 20 mm/min. The touchscreen sits above the horizontal axis.

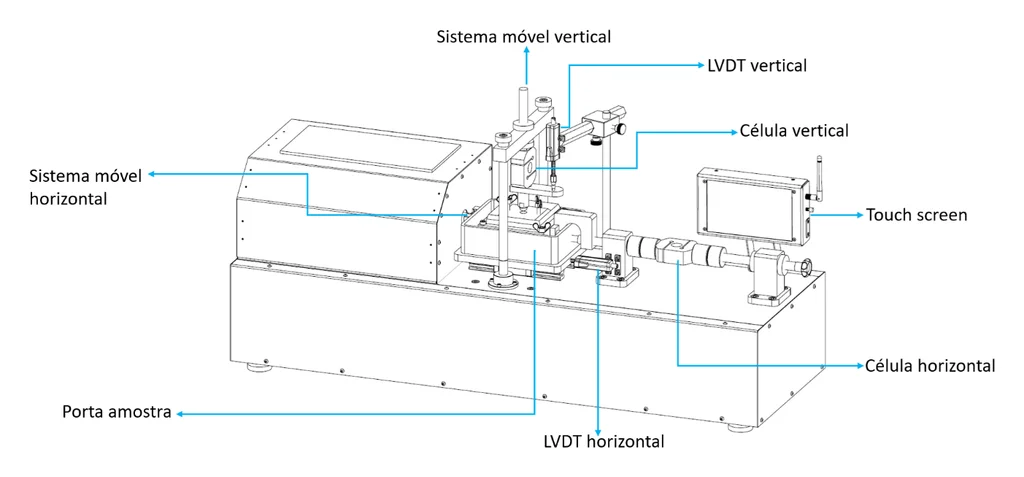

Drawing of the Biopdi electric automatic direct shear apparatus with labeled components: vertical and horizontal moving systems, vertical and horizontal LVDTs, vertical load cell, horizontal load cell, specimen carrier and touchscreen
Main components. The vertical moving system moves down onto the test specimen and the vertical load cell measures the normal force; the horizontal moving system moves the porta-amostra, where the box sits, and the horizontal load cell, in line with that axis, measures the shear force. The vertical LVDT measures the change in height of the test specimen and the horizontal LVDT, the shear displacement, with a resolution of 0.001 mm. Both axes have ball screws and limit switches.

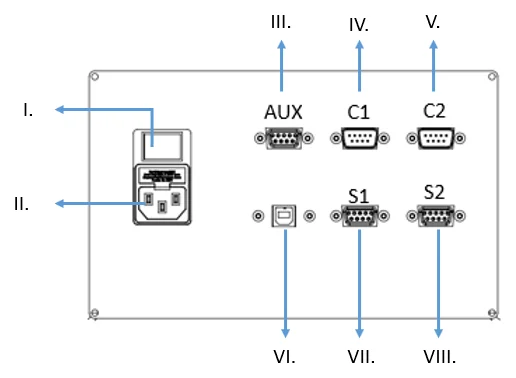

Rear connection panel of the Biopdi direct shear apparatus, with main switch, power connector, AUX port, C1 and C2 load cell connectors, USB and S1 and S2 LVDT connectors
Connection panel, at the rear of the machine. I. Main switch, which turns the equipment on and off. II. Three-pin power cable connector (220 V). III. AUX, communication with the touchscreen panel. IV. C1, vertical load cell. V. C2, horizontal load cell. VI. USB, for parameter setup of the equipment, done only by authorized Biopdi technicians. VII. S1, vertical LVDT. VIII. S2, horizontal LVDT.

Touchscreen

Biopdi's electric automatic direct shear apparatus has a touchscreen that handles all the settings needed to run the tests, from the consolidation stage to the shearing stage.

Tests are run directly on the touchscreen, which saves them to an SD memory card for later use on a desktop or laptop computer.

The test on screen, step by step

Four screens of the current interface show the path of the test: axis control before mounting the test specimen, the setup of the consolidation phase, the shear phase chart and the data read during the test.

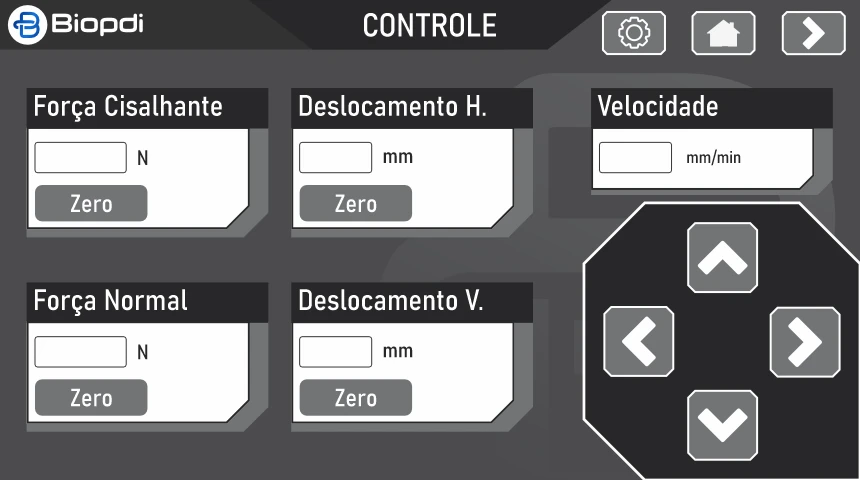

Control screen of the Biopdi direct shear apparatus, showing shear force and normal force in N, horizontal and vertical displacements in mm, zero buttons, speed in mm/min and movement arrows
Control. Shows the shear force and the normal force (N) and the horizontal and vertical displacements (mm), each with its own Zero (tare) button. The arrows raise, lower, advance and retract the specimen holder, and the speed field sets the speed of the horizontal axis, from 0.0001 to 20 mm/min. The home button returns both axes to the starting position, and the gear opens the setup of the limit switches and load cells.

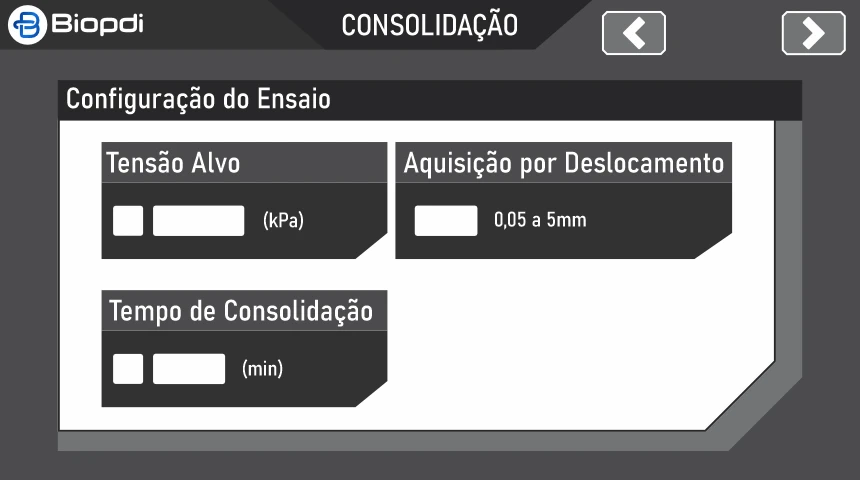

Consolidation screen of the Biopdi direct shear apparatus, showing target stress in kPa, consolidation time in minutes and acquisition by displacement from 0.05 to 5 mm

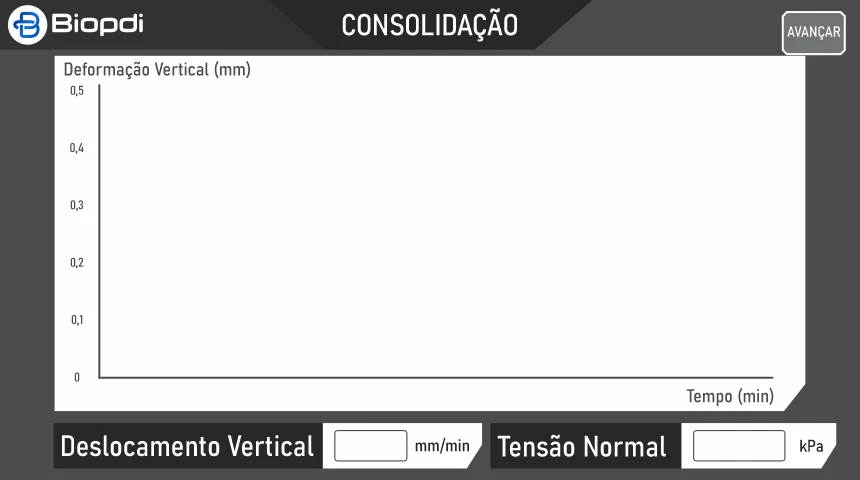

Consolidation. The target stress (kPa) is applied constantly on the vertical axis; the consolidation time (min) is the maximum duration of the phase, and zero skips the phase. Acquisition by displacement records one point at each vertical displacement interval, from 0.05 to 5 mm.

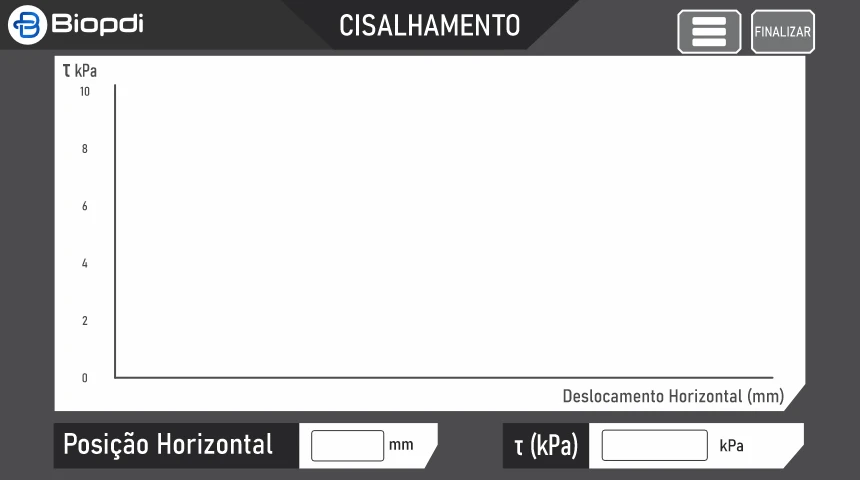

Shear phase screen of the Biopdi apparatus, with the chart of shear stress in kPa versus horizontal displacement in mm and real-time readings of horizontal position and shear stress
Shear phase. The chart plots shear stress τ (kPa) versus horizontal displacement (mm), the curve that gives the peak strength of each test specimen. Below it, the horizontal position (mm) and τ (kPa) in real time. The Finish button ends the test before the automatic stops.

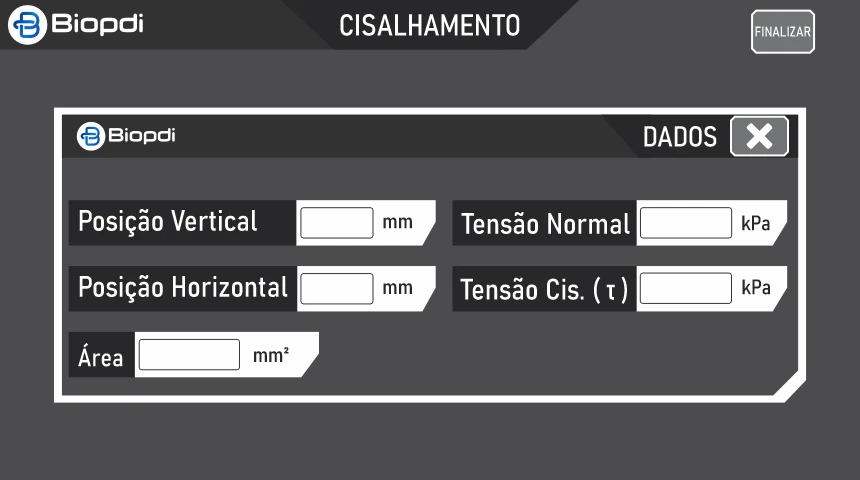

Data window of the shear phase on the Biopdi apparatus, with vertical and horizontal position in mm, normal stress and shear stress in kPa and corrected specimen area in mm²
Data. The data window, opened over the chart, brings together the vertical and horizontal position (mm), the normal stress and the shear stress τ (kPa) and the specimen area (mm²), corrected in real time as the box moves.

Main touchscreen functions

Control Screen

  • Zero (tare) of shear force, normal force and horizontal and vertical displacements
  • Specimen carrier jogging with the arrow keys
  • Horizontal axis speed (0.0001 to 20 mm/min)
  • Home: both axes return to the initial position

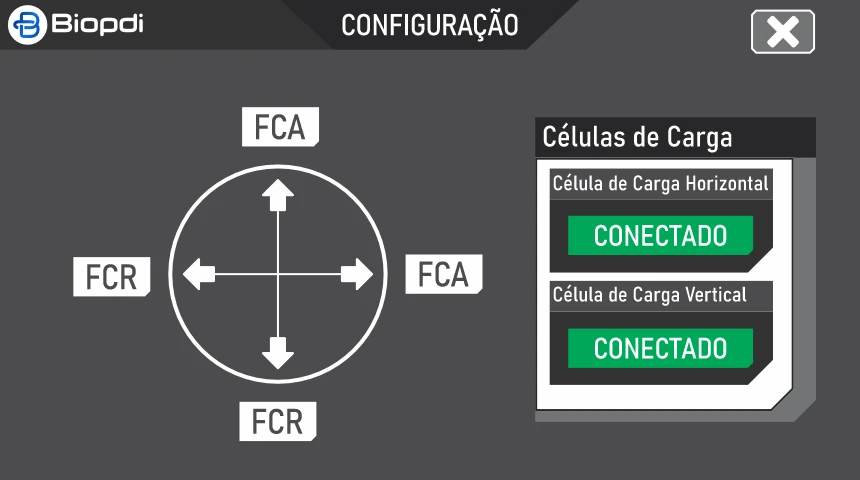

  • Monitoring of limit switches and load cells

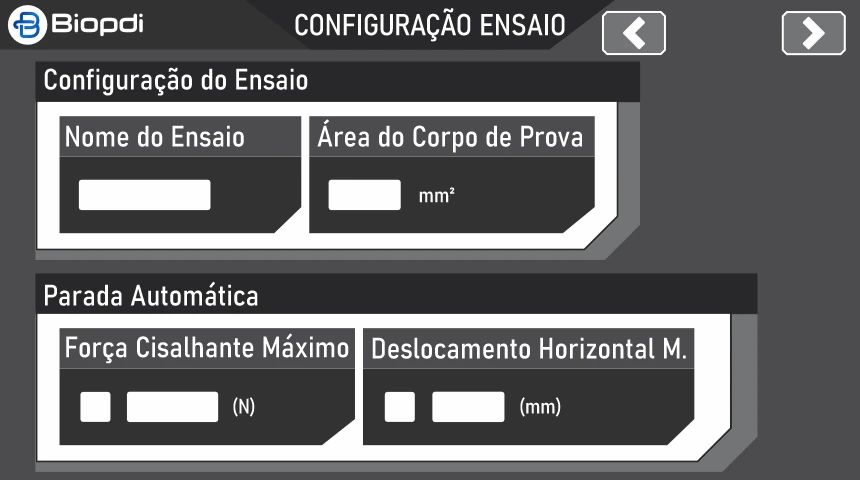

Test setup

  • Test name
  • Specimen area in mm² (3,600 to 10,000 mm²)
  • Automatic stop at maximum shear force (N)
  • Automatic stop at maximum horizontal displacement (mm)

Consolidation phase

  • Target stress in kPa, held constant
  • Consolidation time in minutes (or zero, to skip the phase)
  • Data acquisition every 0.05 to 5 mm of vertical displacement
  • Vertical displacement × time plot

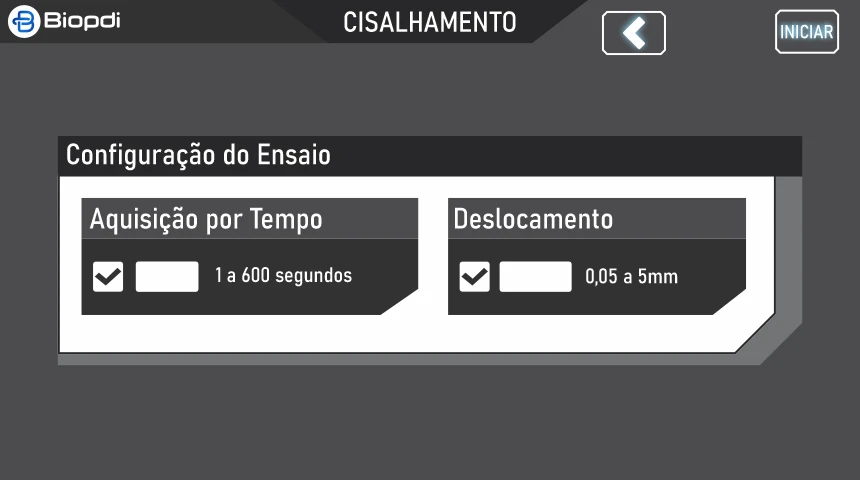

Data acquisition during shearing

  • By time interval (s)
  • Or by horizontal displacement interval (mm)

Shearing phase

  • Shear stress (kPa) plot during the test
  • Shear stress and normal stress (kPa)
  • Horizontal and vertical positions (mm)
  • Specimen area corrected in real time

Technical specifications - Automatic electric model

Technical specifications of the automatic electric direct shear apparatus.

Electromechanical direct shear testing machine, microprocessor controlled, with data acquisition system
Capacity: 10 kN (2,248 lbf)
Two axes with recirculating ball screws and guides: the vertical axis applies the normal force and the horizontal axis applies the shear force
Normal force with constant load control (target stress in kPa)
Shear rate: 0.0001 to 20 mm/min
Return speed after the test: 20 mm/min, with automatic return of both axes
Maximum stroke: 20 mm on the horizontal axis and 10 mm on the vertical axis
Two load cells: vertical (normal force) and horizontal (shear force)
Two LVDTs: horizontal (shear displacement) and vertical (change in specimen height)
0.001 mm resolution in horizontal displacement measurement
Automatic consolidation phase and shear phase
Touchscreen display for adjustment, setup and test monitoring
Tests recorded on an SD card for analysis on a computer
Limit switches on both axes to prevent collision of moving parts
Benchtop frame in ABNT 1020 and ABNT 1045 steel (equivalent to SAE 1020 and 1045), with anti-vibration system
Rear panel with main power switch and connectors for the two load cells and the two LVDTs
Power supply: 220 V; power: 550 W
Dimensions: 1,042 mm (width) × 352 mm (depth) × 528 mm (height); weight: 125 kg
Made in Brazil, manufactured in São Carlos (SP)
12-month warranty against manufacturing defects
Comes with an operating manual in Portuguese

Types of tests

  • Consolidated drained direct shear test (ASTM D3080/D3080M): in the 60 or 100 mm box, the test specimen consolidates under the normal stress and is sheared at the rate calculated from the consolidation; with three or more normal stresses, it gives the failure envelope τ = c' + σ'·tan φ'.
  • Consolidation phase in the shear box itself: the automatic version holds the target stress constant and records the vertical displacement over time, which gives the t50 that sets the shear rate. The full compressibility curve is obtained on the consolidation press (see the article on the consolidation test).

For more details on the direct shear test, visit our articles page. When the problem calls for drainage control or pore pressure measurement, the appropriate test is the triaxial test.

Load cells

Load cells available for the automatic electric direct shear apparatus, up to a capacity of 1,000 kgf (9.8 kN).

5 kgf (49 N)
10 kgf (98 N)
112 lbf
225 lbf
450 lbf
1,124 lbf
2,248 lbf

Fixtures and accessories

Fixtures and accessories used on the direct shear test apparatus.

LVDT

LVDT (displacement transducer)

Linear variable displacement transducer: in the automatic version, one LVDT measures horizontal displacement and another measures the change in specimen height.

Load cell

Load Cell

Measures the applied force: in the automatic version, one load cell on the vertical axis (normal force) and another on the horizontal axis (shear force).

Proving ring

Proving Ring

Measures the shear force on the manual direct shear machine.

Direct shear device

Shear Box

Split shear box in brass and stainless steel, 60 or 100 mm, with loading cap, specimen cutter, porous stones and serrated grid plates.

100 mm shear box (DES-AA-0010-000)

100 × 100 mm test specimen (area of 10,000 mm²).

60 mm shear box (DES-AA-0010-001)

60 × 60 mm test specimen (area of 3,600 mm²).

Both boxes are made of brass with stainless steel parts and come with handles, cap, sample cutter, body, porous stone, grooved plate, perforated grooved plate, lower sample plate and load pad.

The shear cell, part by part

The first figure, from the automatic apparatus manual, shows the assembled shear cell with numbered parts. The other four come from the manual of each box: the exploded view, with the name of each part, and the drawing with the external dimensions.

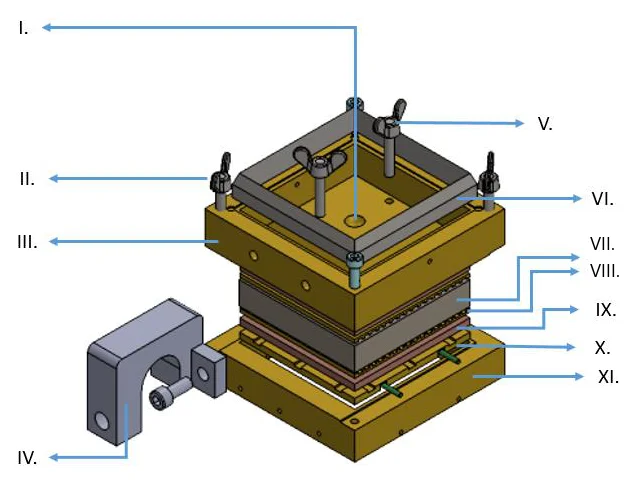

Assembled Biopdi shear cell, with parts numbered I to XI: cap, guide pin, body, load pad, extractor pin, sample cutter, test specimen, grooved plate, porous stone, lower plate and base
I. Cap. II. Guide pin, which locks the movement between the two halves and must be removed before starting the test. III. Cell body. IV. Horizontal load pad. V. Pin for extracting the cap. VI. Sample cutter. VII. Test specimen. VIII. Grooved plate. IX. Porous stone. X. Lower sample plate. XI. Cell base.

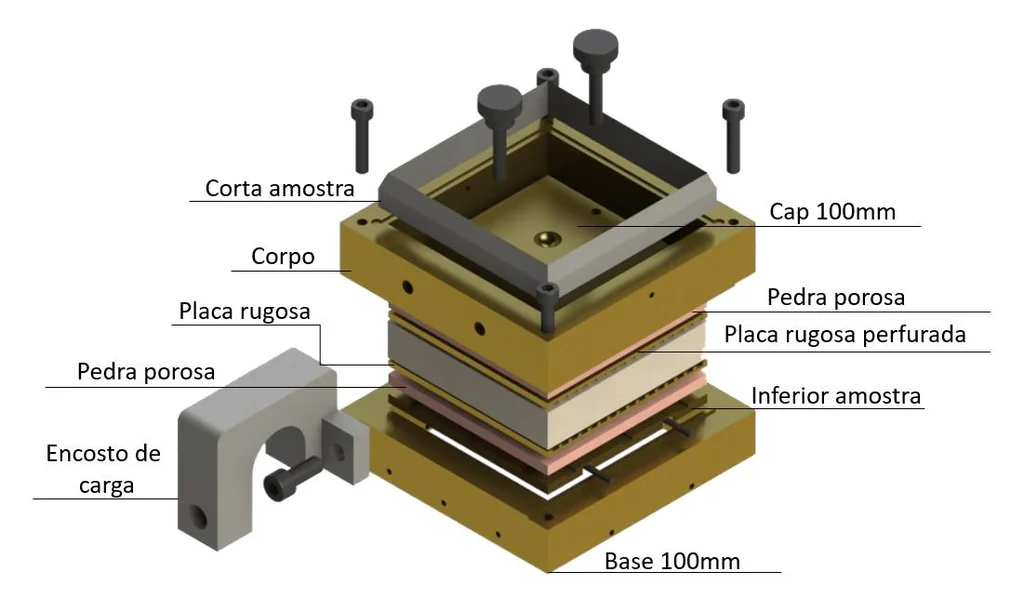

Exploded view of the Biopdi 100 mm direct shear box: sample cutter, 100 mm cap, body, grooved plates, porous stones, lower plate, load pad and 100 mm base
100 mm box (DES-AA-0010-000), exploded view, brass with stainless steel parts: 100 × 100 mm specimen cutter, 100 mm top cap, body, two porous stones, grid plate, perforated grid plate, specimen bottom plate and 100 mm base. On the left, the horizontal loading block.

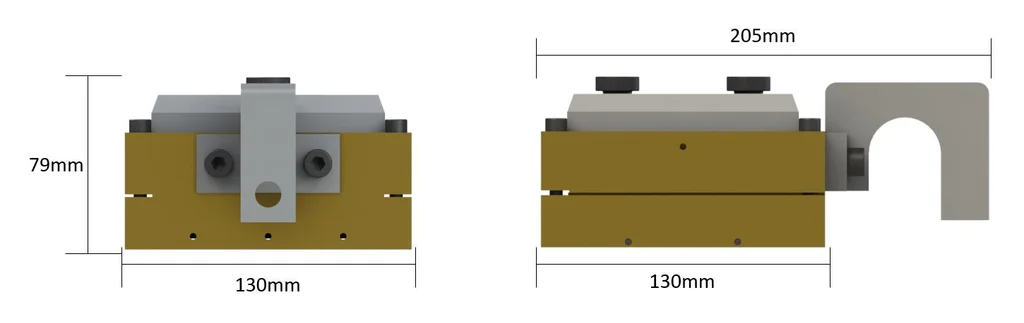

Dimensions of the Biopdi 100 mm direct shear box: 130 mm wide, 79 mm high and 205 mm long including the loading block
100 mm box, external dimensions: 130 × 130 mm base, 79 mm height and 205 mm length including the loading block. 100 × 100 mm test specimen (10,000 mm²).

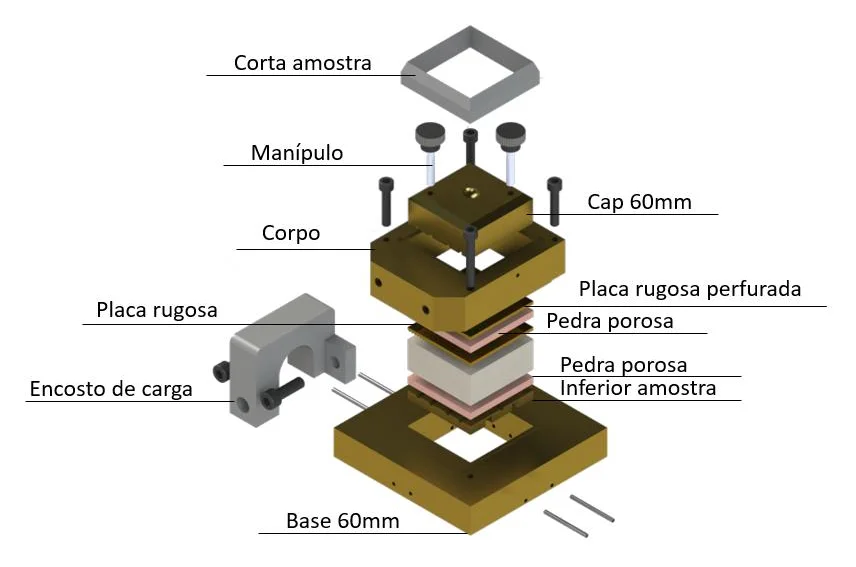

Exploded view of the Biopdi 60 mm direct shear box: specimen cutter, handles, 60 mm top cap, body, grid plates, porous stones, bottom plate, loading block and 60 mm base
60 mm box (DES-AA-0010-001), exploded view, brass with stainless steel parts: 60 × 60 mm specimen cutter, handles, 60 mm top cap, body, perforated grid plate, two porous stones, grid plate, specimen bottom plate, 60 mm base and loading block.

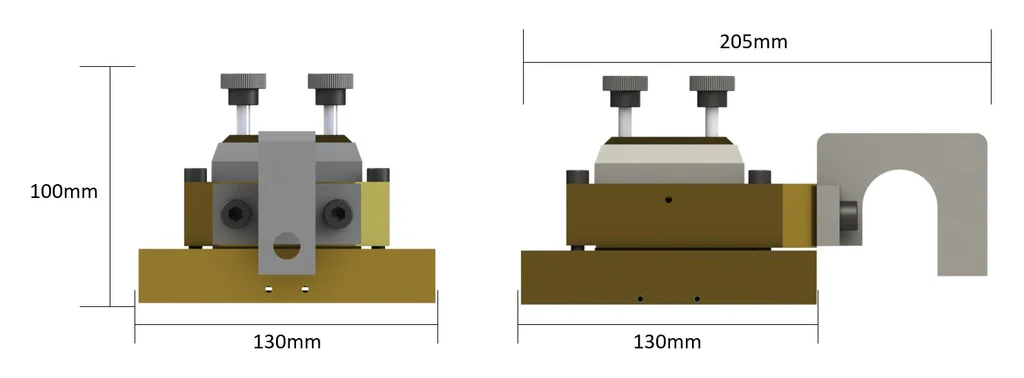

Dimensions of the Biopdi 60 mm direct shear box: 130 mm base, 100 mm height including the handles and 205 mm length including the loading block
60 mm box, external dimensions from the manual drawing: 130 mm base, 100 mm height including the handles and 205 mm length including the loading block. 60 × 60 mm test specimen (3,600 mm²).

Direct shear machine technical specifications

Summary of the automatic electric version, based on the equipment manual; the manual and semi-automatic versions are described above.

ModelsManual, semi-automatic and automatic electric
TestDirect shear test of soils, consolidated drained (ASTM D3080/D3080M)
Drive (automatic)Electromechanical, two axes with recirculating ball screws
Capacity (automatic)10 kN (2,248 lbf)
Shear rate0.0001 to 20 mm/min
Return speed20 mm/min, automatic return
Travel20 mm on the horizontal axis; 10 mm on the vertical axis
Force measurementTwo load cells: vertical (normal) and horizontal (shear)
Displacement measurementTwo LVDTs, horizontal and vertical; 0.001 mm resolution on the horizontal axis
Shear boxes60 × 60 mm and 100 × 100 mm, in brass and stainless steel (area from 3,600 to 10,000 mm²)
Data acquisitionBy time or by displacement (0.05 to 5 mm during consolidation)
Automatic stopAt maximum shear force (N) or at maximum horizontal displacement (mm)
Operation and dataTouchscreen display; tests recorded on an SD card
Power supply220 V, 550 W
Dimensions and weight1,042 × 352 × 528 mm; 125 kg
Warranty12 months against manufacturing defects

The dimension drawing in the manual shows the automatic machine from the front and from the side, with the external dimensions in millimeters.

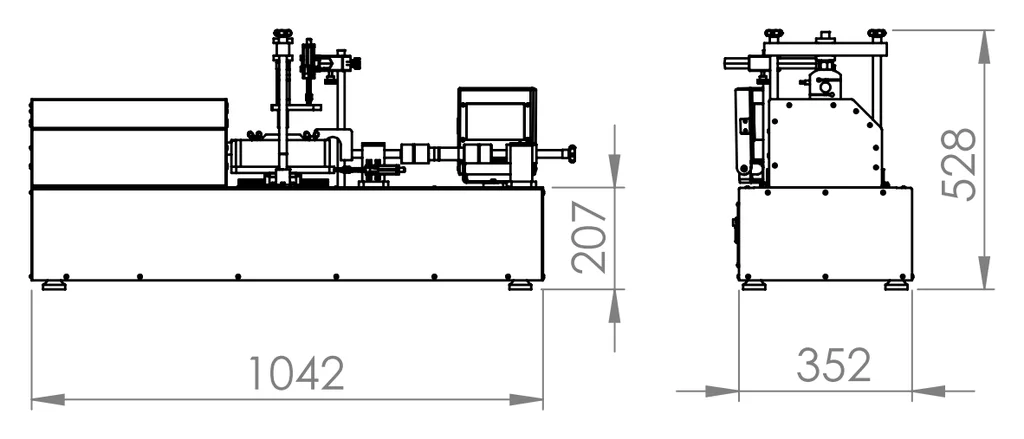

Dimension drawing of the Biopdi automatic electric direct shear machine: 1,042 mm wide, 352 mm deep, 528 mm overall height and 207 mm base height
Front and side view: 1,042 mm wide, 352 mm deep, 528 mm overall height and 207 mm base height. Weighing 125 kg, the machine sits on a level, vibration-free bench, as the manual requires.

Frequently asked questions

The most common questions about the direct shear machine.

What is a direct shear apparatus used for?

It is used for the direct shear test of soils: the specimen, placed in a split shear box, is consolidated under constant normal stress and sheared slowly under drained conditions. With three or more specimens tested under different normal stresses, you obtain the cohesion c' and the friction angle φ', used in the design of slopes, retaining structures and foundations.

Which standard covers the direct shear test?

ASTM D3080/D3080M, current edition D3080/D3080M-23e1. In Europe, ISO 17892-10 applies. There is no specific Brazilian NBR standard for direct shear testing of soil. ISO 12957-1 and ABNT NBR ISO 12957-1 (the latter cancelled in 01/2026) cover the friction of geosynthetics, not the shear strength of soil.

What are the capacity and speed range of the automatic apparatus?

The electric automatic direct shear apparatus has a capacity of 10 kN (2,248 lbf) and a shear speed of 0.0001 to 20 mm/min, with 20 mm of travel on the horizontal axis and 10 mm on the vertical axis. The slow range covers drained shearing of clays, where the speed is derived from the t50 of consolidation.

How is force measured during the test?

In the electric automatic version, by two load cells: one on the vertical axis, measuring the normal force, and one on the horizontal axis, measuring the shear force. Displacements are measured by two LVDTs, horizontal and vertical. In the manual version, the shear force is read on a proving ring and the displacements on dial gauges.

Which shear box sizes does Biopdi supply?

Two split shear boxes in brass and stainless steel: 100 × 100 mm and 60 × 60 mm. Each comes with a cap, specimen cutter, body, porous stone, grooved plates (one perforated), bottom plate and loading pad. The apparatus screen accepts areas from 3,600 to 10,000 mm², matching exactly these two boxes.

Does the apparatus perform consolidation before shearing?

Yes. In the automatic version, the operator sets the target stress in kPa, which the apparatus holds constant, and the consolidation time; the vertical displacement × time plot is shown on screen. When this phase ends, the apparatus moves on to shearing by itself, at the programmed speed.

What is the difference between the manual, semi-automatic and automatic apparatus?

In the manual version, the normal stress comes from weights on a lever arm, the shear force is read on a proving ring and the displacements on dial gauges. The semi-automatic version keeps the lever arm, but measures with a load cell and LVDTs and has a motor and a touchscreen. The electric automatic version applies both forces with motors, measures with two load cells and two LVDTs, and performs consolidation and shearing without operator intervention.

How is the test data recorded?

The touchscreen records each test on an SD card, which is then read on a computer. Data acquisition is set by time interval or by displacement interval, and the screen shows the stresses, positions and corrected specimen area in real time.
