Optical table

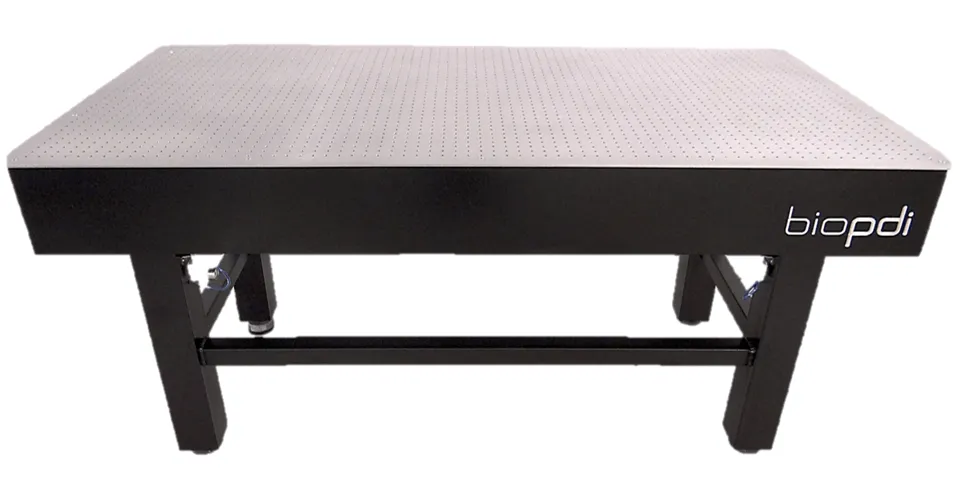

The optical table, used in industrial and university laboratories, has many applications, such as geometrical optics experiments, nonlinear optics, experimental setups, among others. The optical table is 1800 mm long, 900 mm wide and 120 mm thick.
The table top is made of aluminum or stainless steel, with tapped holes (M6 or M8 threads) across the entire surface on a 25 mm center-to-center spacing, and an active or passive damping system. The table frame is reinforced steel, with rubber feet (Vibra-stop) for leveling and electrostatic powder coating.
Development of honeycomb core tables, with a stainless steel top skin with M6 holes, a carbon steel bottom skin with M8 holes and electrostatic powder coating, using PU (polyurethane), sheets with a flatness of +/- 0.15 mm and holes sealed against liquid ingress.
Features
Main features of the optical table designed and manufactured by Biopdi.
Custom projects

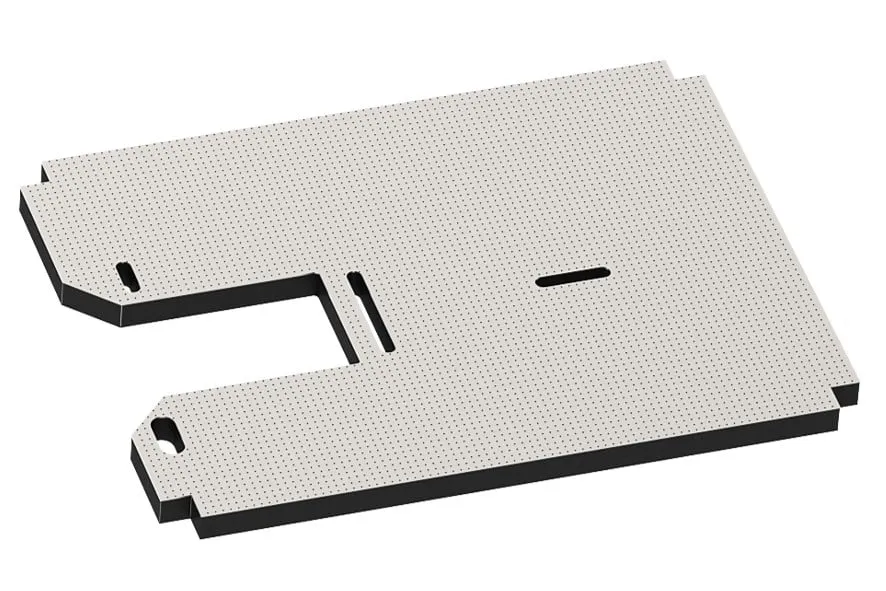

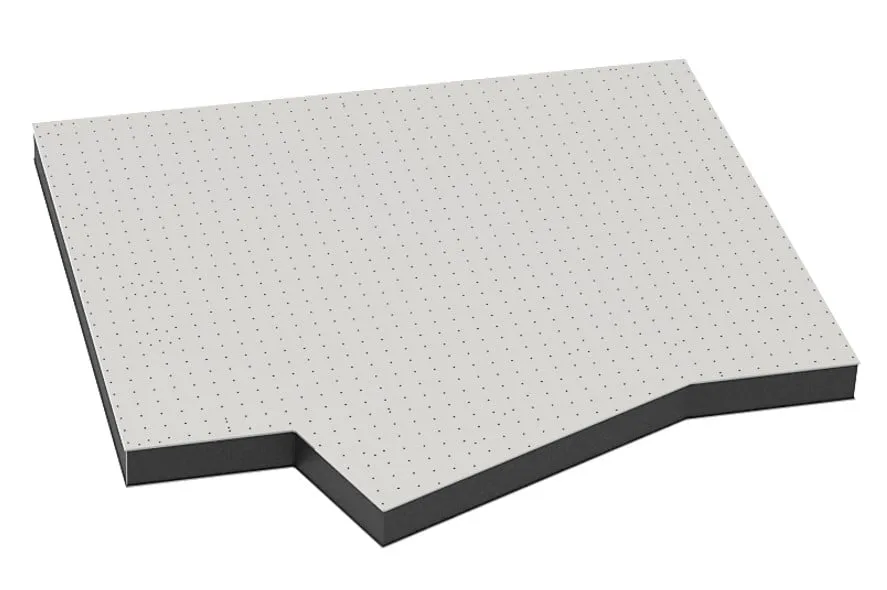

Biopdi can develop optical tables of any type and shape. See some examples of custom projects built to our customers' requests. We meet every need and serve every location in Brazil.
Video
Videos of optical tables used in industrial and research laboratories.
Request a quote
To learn more about the optical table, including price, commercial terms and delivery times, contact our team.
